Biomass pellet burner machine

Biomass pellet burner machine

  • 【Daily Capacity(t/d)】:
  • 【Final Moisture(%)】:
  • 【Drying Temperature(°C)】:
  • 【Total Installed Power (Kw)】:

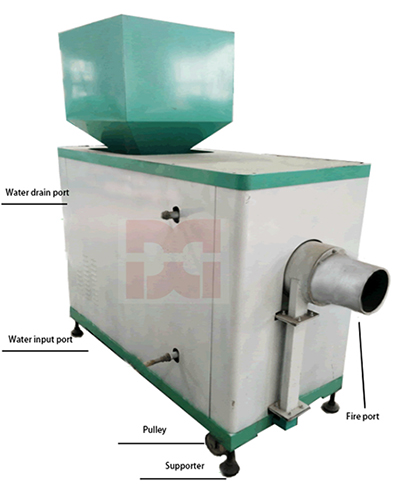

Biomass pellet burner machine Overview
Biomass burner introduction:
Biomass burner uses biomass particles or biomass pellet as fuel,  set high efficiency and energy saving, clean and environmental protection, full automatic control, easy to install and use, a wide range of applications and many other advantages in one, using unique boiling semi-gasification, complete low-nitrogen combustion, ithe efficiency of which can reach more than 98%, widely used in various types of boilers, industrial kilns and spraying, drying, transfer, melting aluminum and other production lines and other thermal energy industries.
Advantages of biomass dryer:
1.Complete combustion and high combustion efficiency
The equipment operates under the condition of low pressure, which effectively avoids the phenomenon of tempering and degasification.
The fuel conveying system has high precision and accurate and smooth feed.
The Gasification chamber burns at low temperature and pyrolysis at high temperature.
2.Wide thermal load adjustment range
The thermal load of the burner can be adjusted quickly in the 30%-120% range of the rated load, starting fast and responsive.
3.Clean and environmental protection
Low nitrogen: low temperature segmented combustion technology, NOx≤300mg/Nm3;
Low dust, no sulfur: dust is 1/10-1/20 of Ⅱ type of bituminous coal, sulfur is 1/100 of Ⅱ type of bituminous coal, boiler tail gas can be close to natural gas after the necessary treatment;
CO2 Zero Emissions: combustion of biomass fuels, resulting in carbon dioxide offset by carbon dioxide needed for biological growth, with zero emissions.
4.No tar, waste water and other waste emissions
Using high temperature cracking combustion technology, tar ect.combust directly in the form of gaseous, solving the problems of biomass gasification of tar content, avoiding second pollution to water.
5.Low investment and low operating costs
Biomass combustion mechanism design is reasonable, can be used for a variety of equipment transformation, whose cost is only 29% of fuel boilers, 60% of gas boilers, 20% of electric heating boilers.
6.Simple operation and easy maintenance
Automatic feeding, automatic ignition, automatic temperature control, automatic size fire conversion and intelligent automatic operation.
Biomass burner technical parameter:

Type Feeding
Fan power
Coal Oil Gas Calorific
DKR-0.5 0.75 1.5 2.2*1.3*1.0 70 65 30 38 300
DKR-2.0 1.5 3.0 2.6*1.6*1.2 310 280 120 150 1200
DKR-4.0 2.2 4.0 2.8*1.6*1.4 600 540 240 300 2400
DKR-6.0 3.0 4.0 2.8*1.7*1.6 1000 900 360 450 3600
DKR-8.0 4.0 5.5 3.2*1.8*2.0 1200 1100 480 600 4800
DKR-10.0 4.0 5.5 3.6*1.8*2.0 1500 1500 1350 750 6000


If you want to know more about Biomass pellet burner machine, please leave a message or send an email to Dongding@zzddjt.com
