Sawdust Burner

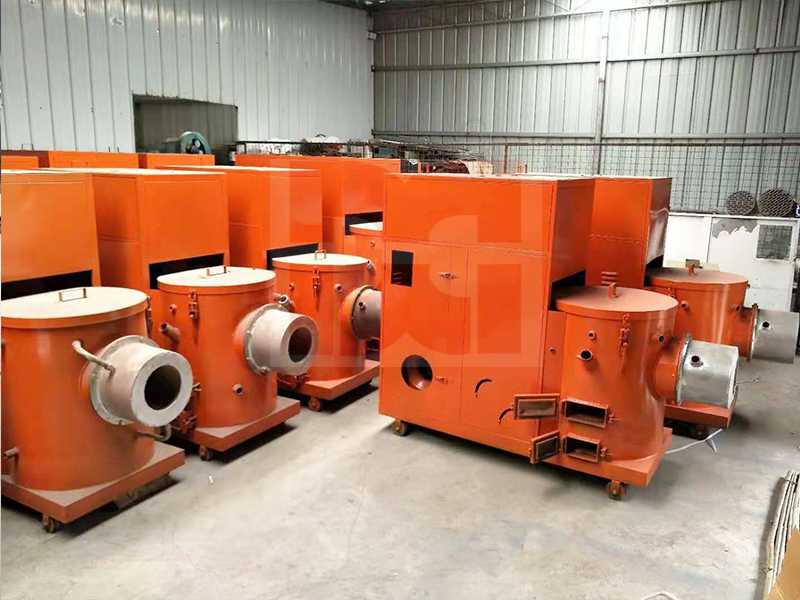

Sawdust Burner

  • 【Daily Capacity(t/d)】:
  • 【Final Moisture(%)】:
  • 【Drying Temperature(°C)】:
  • 【Total Installed Power (Kw)】:
Sawdust Burner Overview
Working Principle of Sawdust Burner
Sawdust through the automatic feeding system into the high temperature cracking semi-gasification combustion combuster, air and water vapor from the lower part of the furnace, thus in the hypoxic combustion combuster, produce high-temperature gas by rapid cracking reaction, and the not fully burned gas such as Co, H2, CH4, CNHM will get fully burn in its outlet, where the temperature can reach 300-400 degrees Celsius, releasing the heating totally.
Advantages of Sawdust Burner
1. Complete combustion and high combustion efficiency
The equipment operates under the condition of low pressure, which effectively avoids the degasification.
The fuel conveying system has high precision and accurate feed.
The Gasification combuster burns at low temperature and pyrolysis at high temperature.
2.Wide thermal load adjustment range
The thermal load of the burner can be adjusted quickly in the 30%-120% range of the rated load, starting fast and responsive.
3.Clean and environmental protection
Low nitrogen: low temperature segmented combustion technology, NOx≤300mg/Nm3;
Low dust, no sulfur: dust is 1/10-1/20 of Ⅱ type of bituminous coal, sulfur is 1/100 of Ⅱ type of bituminous coal, boiler tail gas can be close to natural gas after the necessary treatment;
CO2 Zero Emissions: combustion of biomass fuels, resulting in carbon dioxide offset by carbon dioxide needed for biological growth, with zero emissions.
4.No tar, waste water and other waste emissions
Using high temperature cracking combustion technology, tar and so on combust directly in the form of gaseous, solving the sawdust gasification of tar content, avoiding second pollution to water.
5.Low investment and low operating costs
Sawdust combustion mechanism design is reasonable, can be used for a variety of equipment transformation, whose cost is only 29% of fuel boilers, 60% of gas boilers, 20% of electric heating boilers.
6.Simple operation and easy maintenance
Automatic feeding, automatic ignition, automatic temperature control, automatic size fire conversion and intelligent automatic operation.


If you want to know more about Sawdust Burner, please leave a message or send an email to Dongding@zzddjt.com
