Drum Scraper dryer

Daily Capacity : 40-250kg/h (adjustable)

Final Moisture : 12%-15%

Material : brewery yeast, sludge and sticky materials in food, chemical, pharmaceutical and other industries

lntroduction

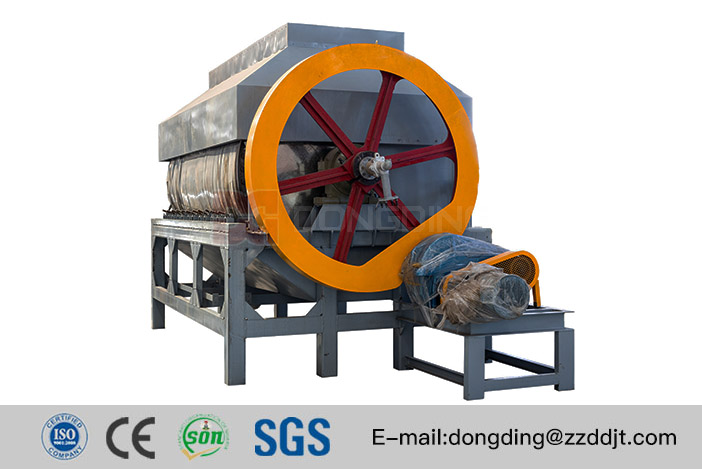

The drum scraper dryer adopts an indirect heating mode. By heating the rotating drum, it evaporates moisture from the viscous materials adhered to the drum surface.

The operating parameters of the drum scraper dryer—such as feed concentration, film thickness, and drum rotational speed—are adjustable to meet the specific requirements of different material properties. It is suitable for the dehydration of viscous and heat-sensitive materials in industries such as yeast, chemicals, dyes, pharmaceuticals, food, and metallurgy.

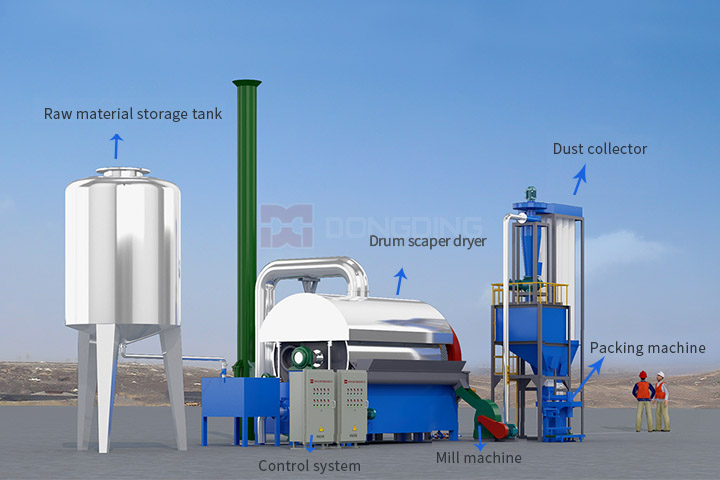

System

Wet materials evenly cover the drum surface from the feeding inlet. the drum forms a material film upon contact with wet materials during rotation. The internally heated drum transfers heat through its wall by steam or thermal oil to evaporate water in the material film. During the rotation, dried materials are scraped off by the internal scrapers, then collected at the discharge outlet. The finished products are available in flake, powder or granular forms.

Advantage

1. Uniform Drying Thin evenly spread material film with consistent heat and mass transfer; eliminates uneven drying, ensuring stable product quality. 2. Wide Operating Flexibility Adaptable to various materials and output capacities. Automatic control enables simple operation, easy maintenance and real-time parameter monitoring for stable running. 3. Premium Drum Construction Material-contact drum adopts high-grade cast iron with corrosion resistance and zero contamination; stainless steel is optional for diverse drying demands. 4. High Thermal Efficiency Thermal efficiency reaches 80%–90%. 5. Short Drying Cycle Forms 0.5–1.5 mm thin wet film; drying completed within 10–15 seconds, ideal for heat-sensitive materials.

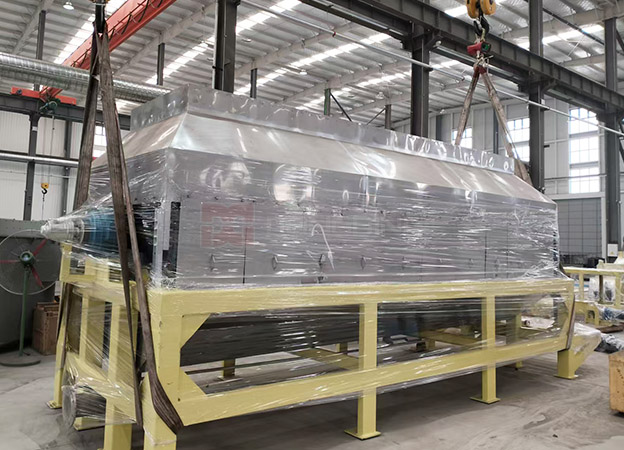

Drum Scaper Dryer Cases

Technical Parameter

Model	JHD1500×2500	JHD2000×2000	JHD2000×2500	JHD2000×3000	JHD2000×3500	JHD2500×3500	JHD2500×4000	JHD3000×4000
Capacity（kg/h)	40-55	50-65	60-80	70-100	90-120	100-150	120-180	150-250
Drum siza （mm）	Φ 1500×2500	Φ 2000×2000	Φ 2000×2500	Φ 2000×3000	Φ 2000×3500	Φ 2500×3500	Φ 2500×4000	Φ 3000×2500
Rotation speed （r/min）	4-8	4-8	4-8	4-8	4-8	4-8	4-8	4-8
Steam working pressure （Mpa）	0.15-0.3	0.15-0.3	0.15-0.3	0.3-0.5	0.3-0.5	0.3-0.5	0.3-0.8	0.3-0.8
Big pressure of steam （Mpa）	0.3	0.3	0.3	0.4	0.5	0.5	0.8	0.8
Steam consumption （kg/h）	280-370	320-390	360-480	370-500	380-520	380-550	400-600	450-800
Main motor power （kw）	7.5	11	15	18.5	22	30	37	45
Total weight （T)	8.5	10.7	12.2	13.5	15.0	17.0	21.0	25.0
