Single Pass Rotary Drum Dryer

Daily Capacity : 40-300T/D

Final Moisture : 12-15

Material : minerals, coal, sand, ore, etc

lntroduction

Single pass rotary dryer, also named single cylinder dryer, rotary drier, heated dryer, widely used in food, feed, fertilizer, chemical, pharmaceutical and mining industries. It consists of a drum, lifting plates, and a transmission device, etc. Through the inclined rotary drum and internal lifting plates, the material is dried evenly in full contact with the hot airflow. It is mainly used to dry materials with high moisture content and high viscosity, such as lignite, coal slime, sludge, fly ash, river sand, clay, mineral powder, slag, fruit pomace, and poultry manure, etc. And according to the different requirements, it can adopt different heat sources. It has the advantages of reasonable structure, stable and simple operation, and convenient maintenance, etc.

System

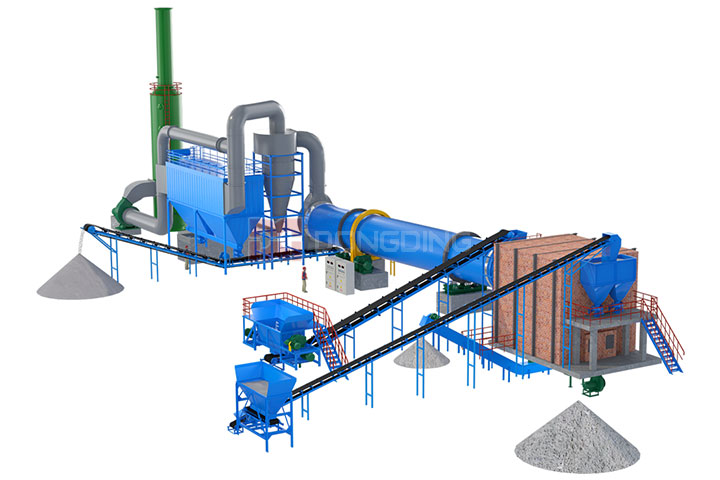

Single pass rotary dryer mainly consists of heat source, feeding machine, rotary drum, discharging machine, induced draft fan, unloading feeder, cyclone dust remover, odor removal equipment and power distribution cabinet form. Wet material enters the drum through the feeder. As the drum slowly rotates, the material is continuously lifted and thrown down by gravity and the lifting plates, making full contact with the hot air. Hot air, generated by a combustion furnace or other heat source, is transported into the drum through pipes. It exchanges heat with the material, causing the water in the raw material to evaporate, thus achieving the purpose of drying.

Advantage

1. Energy Saving: The single pass rotary dryer uses a new type of transmission device, which can save 20% more coal compared to conventional dryers, allowing users to save more on operating costs and bring greater economic benefits. 2. Precise control of the drying time and temperature are ensured; 3. Reasonable design of the air outlet, no dust pollution; 4.Multiple heating source choices. Tailored solutions for each customer. 5. Strong overload resistance, large processing capacity, less fuel consumption and low drying cost. 6.The concurrent flow drying method is more conducive to the evaporation of moisture in gypsum by high temperature, and improves the thermal efficiency. 7.The new designed feeding and discharging device eliminates the feeding blockage, discontinuity, unevenness and the materials return, thus reducing the load of the dust removal system.

Single Pass Rotary Drum Dryer Running Site

Technical Parameter

Model

DDSG1208

DDSG1408

DDSG1610

DDSG2010/3

DDSG2210/3

DDSG2510/3

DDSG2512/3

DDSG2912/3

Input Capacity(t/d)

43.7

52.5

75.8

169

186.5

215.5

262.2

317.6

Output Capacity(t/d)

25.7

30.9

44.6

99.4

109.7

126.7

154.2

186.8

Vaporization(t/h)

0.75

0.9

1.3

2.9

3.2

3.7

4.5

5.45

Early moisture(%)

35-50 (adjustable)

Final moisture(%)

12-15(adjustable)

Drying temperature

270-320

Total motor power(kw)

100

125

145

165

Total weight(kg)

15000

17000

21500

26500

28500

37000

41000

45500

Plant area(m)

5m*14m

6m*16m

8m*16m

10m*16m

10m*18m

10m*20m
