Bagasse Dryer
Daily Capacity : 62.5-120.0 T/D
Final Moisture : ≤12% (adjustable)
Material : bagasse, sugarcane bagasse, sugarcane waste, etc
- Get Price
-
Welcome to visit the factory at anytime!
Daily Capacity : 62.5-120.0 T/D
Final Moisture : ≤12% (adjustable)
Material : bagasse, sugarcane bagasse, sugarcane waste, etc

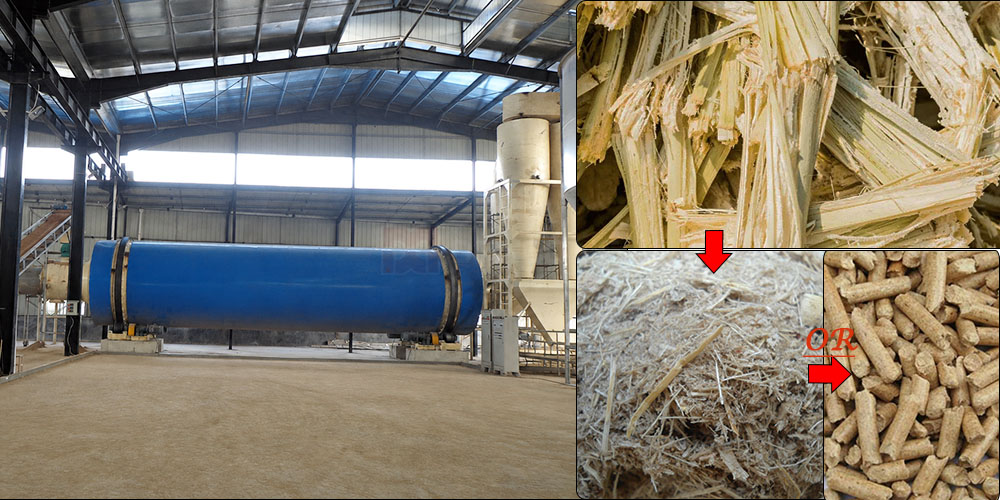

Bagasse refers to sugarcane granular waste left after crushing and pressing. After drying, it can be used as animal feed. It can also used as biofuel for it's considerable calorific value, mostly in sugar mill plant. It can be used for papermaking. And it can be carbonized to make activated carbon in wastewater treatment. The density, durability, combustion characteristics of bagasse will be improved after drying, and it will be easier to transport and storage.

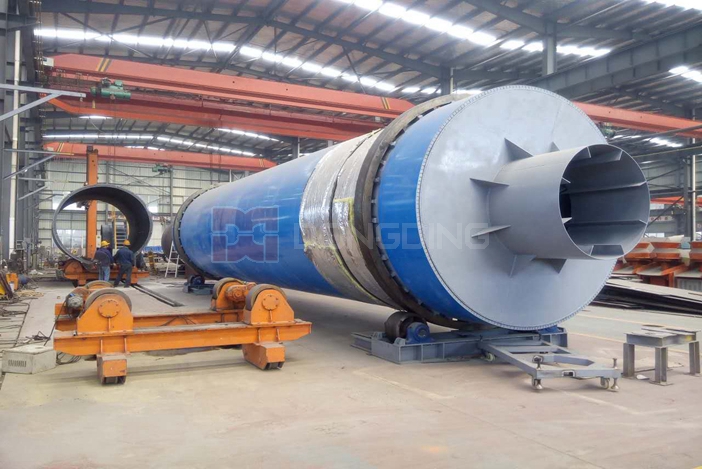

Bagasse rotary dryer adopts a high-temperature rapid drying process, with a large heat transfer coefficient and high thermal efficiency, and can quickly dry the bagasse to the dried bagasse with moisture of 12%. Bagasse dryer is specially designed for drying materials with certain viscosity; A special scraping device is used inner the drying cylinder to avoid the materials from sticking to the wall. Bagasse Dryer Production Line consists of heat source, feeder, sugarcane bagasse dryer, discharge machine, induced draft fan, unloader and power distribution cabinet, smashing system, packing system and other components. We can provides various models of sugarcane bagasse dryer and can also make a customized solution according to the needs of our customers.
After a certain degree of dehydration and scattering, bagasse enters into the drying roller through the material feeder. Under the stirring of the lifting plates and shoveling plates that distribute evenly inside the roller, the sugar cane bagasse scatter evenly and contacts with hot air sufficiently in the drying area. This speeds up the drying heat transfer and mass transfer. Wet air is pumped by air-inducing device, which avoids material from being wet again.
1. The three-layer drum of the bagasse dryer has a good self-heating effect, which greatly reduces heat loss; the thermal efficiency can reach 80%;
2. The floor space of the three-layer bagasse dryer is smaller than the traditional dryer, reduces the floor area and saves about 40% of the project investment, 50% saving in power consumption;
3.Hhigh mechanization degree, continuous operation, large processing capacity;
4. The material feeding speed is controlled by frequency conversion speed regulation, which can easily adjust the required final moisture according to users' needs;
5. Bagasse dryer can use various heat sources, such as hand-fired hot air stove, oil-fired boiler in large power plant, direct or indirect hot air stove, gas, fuel oil, coal-fired stove, etc.
| Specification | Capacity (T/D) | Initial Moisture (%) | Final Moisture (%) | Total Power (kw) | Floor Area (m2) |
| DDSG2010/3 | 62.5 | 60±5 | ≤12 | 78 | 8m*18m |
| DDSG2010/3 | 70.5 | 60±5 | ≤12 | 85 | 8m*18m |
| DDSG2010/3 | 83.5 | 60±5 | ≤12 | 110 | 10m*18m |
| DDSG2010/3 | 108.0 | 60±5 | ≤12 | 125 | 10m*22m |
| DDSG2010/3 | 120.0 | 60±5 | ≤12 | 135 | 10m*25m |
| DDSG2010/3 | 150.0 | 60±5 | ≤12 | 160 | 10m*30m |
We can also provide customized models according your needs
