Coal Dryer

Daily Capacity : 300-2500T/D

Final Moisture : ≤8%

Material : raw coal, lignite, coal slag, coal slime, etc

Email : dongding@zzddjt.com

lntroduction

From mining to processing, coal can be divided into different types of products such as raw coal, clean coal, and coal slime. In practical applications, the moisture content of the coal will affect the quality of downstream industrial products or the operation of boiler. Our company has developed the coal dryer line in order to improve the quality and storage and transportation performance of coal. Coal dryer system are designed according to the characteristics of different coal to ensure the efficient and safe operation during the dying process.This coal dryer plant has the advantage of large processing capacity, low energy consumption, low drying cost, etc.

System

Firstly, the raw material (crushed if needed) transported to the rotary drum dryer by the belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body, during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The left material mixed with dust continue goes into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected. Lastly, with the function of induced draft fan, the left material will discharged through the conveyor.

Advantage

1 By adopting the co-current drying method, the hot flue gas and the wet material enter the dryer from the same side, and high-temperature flue gas can be used to obtain higher evaporation intensity, the dryer outlet temperature is low, and the thermal efficiency is high;
2 The operating parameters can be changed according to the nature of different materials, so that the material in the drying cylinder to form a balanced dispersion of the state, the heat exchange more fully;
3 New inlet and outlet devices eliminate plugging, discontinuities, inhomogeneities, and feed back of the tumble dryer, and reduce the load on the dedusting system;
4 The new internal structure strengthens the cleaning and heat transfer of the dispersion material, eliminates the adhesion phenomenon of the inner wall of the dryer, and has a strong adaptability to the humidity and viscosity of the material.

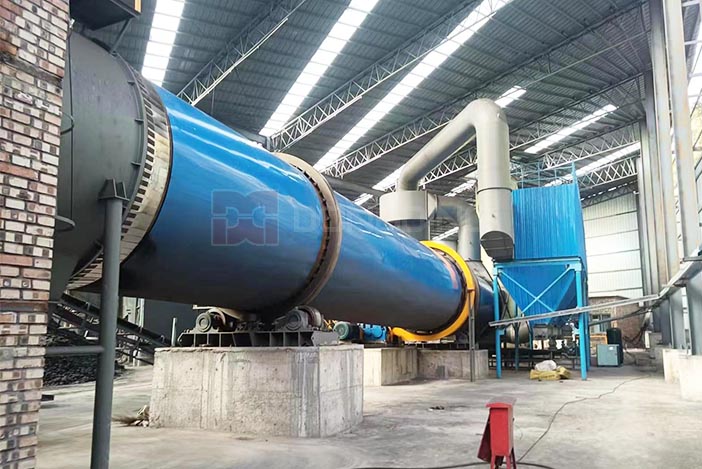

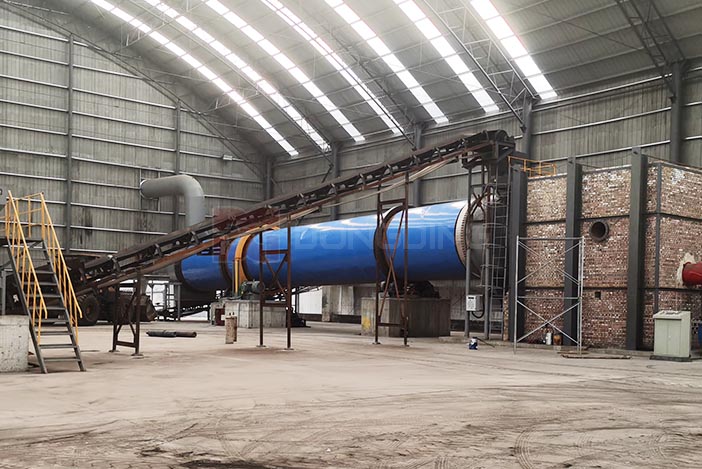

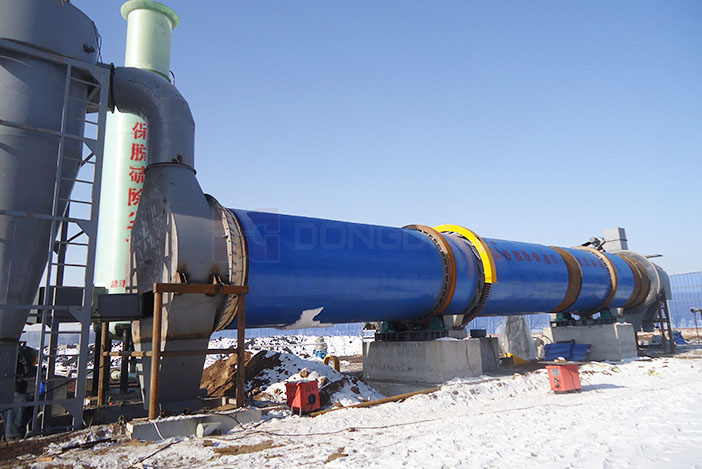

Coal Dryer Running Site

Technical Parameter

Model Processing capacity (T/D)Final moisture (%) Total power (kw)Floor area (m2)
DDHG1918300±10≤8109 7m*25m
DDHG2218500±10 ≤81288m*30m
DDHG2520700±12 ≤8240   8m*30m
DDHG2822 1000±15≤8 400     8m*40m
DDHG3024 1200±20≤8480  12m*50m
DDHG3428 1500±30≤860012m*60m
DDHG38301800±30≤8800     16m*70m
DDHG4032 2000±30≤81000    18m*70m
DDHG42382500±30 ≤81200  20m*80m
