Cyclone Dust Collector Introduction

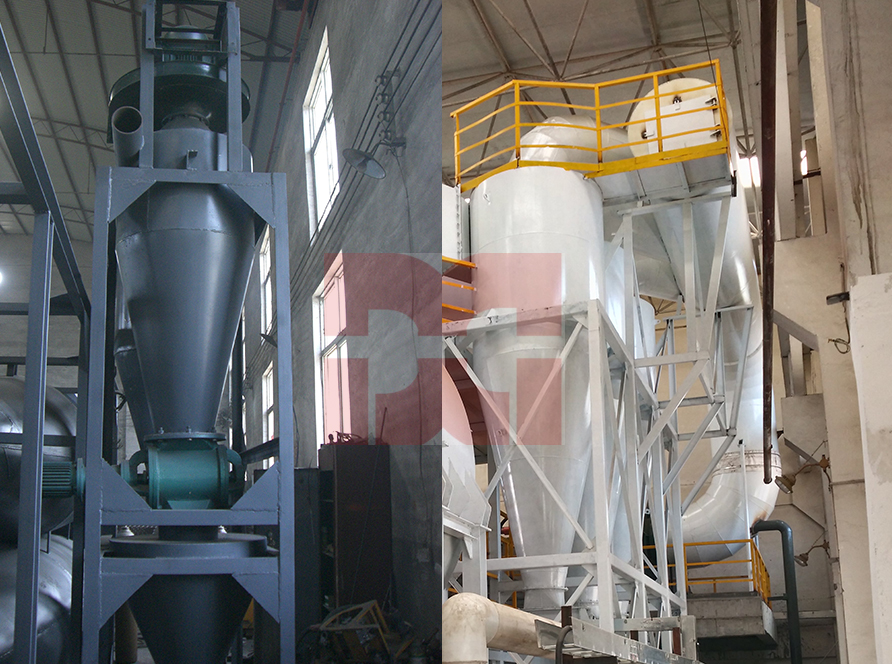

Time : 2019-01-11 Writer : ddjxCyclone dust collector, also called pneumatic cyclone separator, is a dust removal device which separates dust particles from the dust flow by using the centrifugal force generated by the rotating airflow, is generally used to collect particles above 5-15μm, and after improvement, the dust removal efficiency is more than 85%. It has the advantages of simple structure, small volume, low invest cost, the operation and maintenance is convenient, widely used in industrial factories
Technical parameter
| SPECIFICATION(mm) | CAPACITY(m3/h) | INLET WIND SPEED（m/s） | EQUIPMENT EFFICIENCY(%) | WEIGHT（kg） |
| ψ1000 | 7750-9450 | 18-22 | 88-95 | 1050 |
| ψ1250 | 11600-14200 | 18-22 | 88-95 | 2050 |
| ψ1500 | 16750-20450 | 18-22 | 88-95 | 3000 |
| ψ1750 | 23350-28500 | 18-22 | 88-95 | 3550 |
| ψ2000 | 30050-36700 | 18-22 | 88-95 | 4250 |
